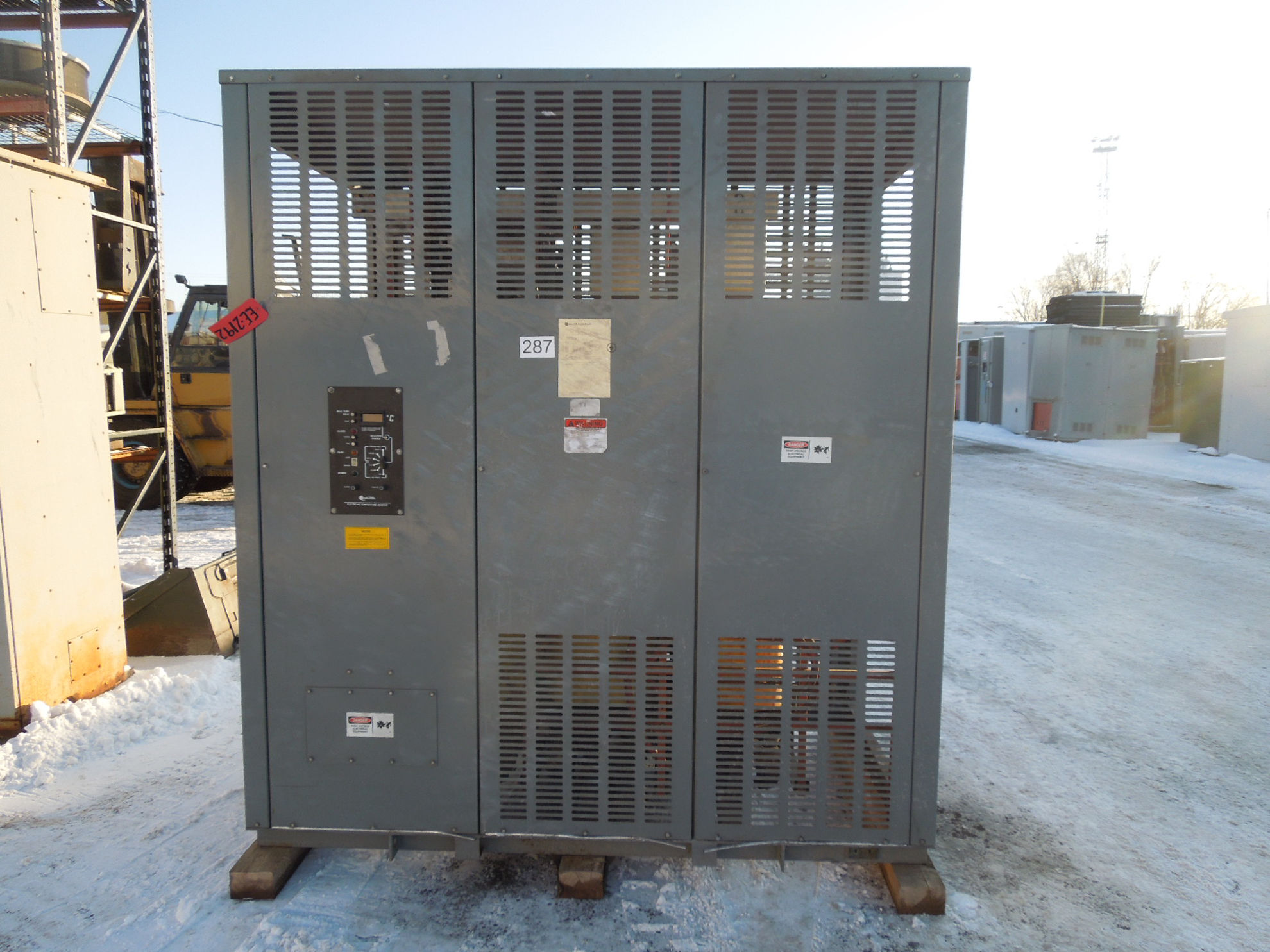

Square D/ Sorgel 2000/2667 KVA 8320-480Y/277V Power-Dry Insulated Dry Type Transformer R&G

Product description:

Square D / Sorgel Transformers Insulated Power Medium Voltage Dry Type Transformer: 2000/2667 KVA, High Voltage: 8320 Volt 60KV BIL, Low Voltage: 480Y/277 Volt 10KV BIL 3207.5 Amps (2667KVA), 3 Phase, NEMA 1 indoor. (Transformer is stored Indoors) Used Electrically Okay; Plus freight

  • High Voltage Taps:
    • 8736 Volts, 176.2 Amps @ 2667KVA
    • 8528 Volts, 180.5 Amps @ 2667KVA
    • 8320 Volts, 185.0 Amps @ 2667KVA
    • 8112 Volts, 189.8 Amps @ 2667KVA
    • 7904 Volts, 194.78 Amps @ 2667KVA
  • 60Hz
  • 150°C Rise
  • Impedance 5.86% @ 2000KVA
  • MFG Date 6/1998
  • Serial# 984093-VA
  • High Voltage/Low Voltage Windings: Aluminum
  • Dimensions: 94" High 84" Wide 54" Deep
  • 9800 Lbs
  • (Transformer is stored Indoors) Used Electrically Okay; Plus freight

(MVDT# 287 Loc: EMSCO North)

Specs:

  • KVA : 2000/2667
  • Secondary Voltage : 480Y/277V
  • Indoor/Outdoor : Indoor
  • Condition : Refurbished
  • Phase : 3
  • Manufacturer : Sorgel Electric
  • Primary Voltage : 8320
SKU: MVDT287
$30,000.00
