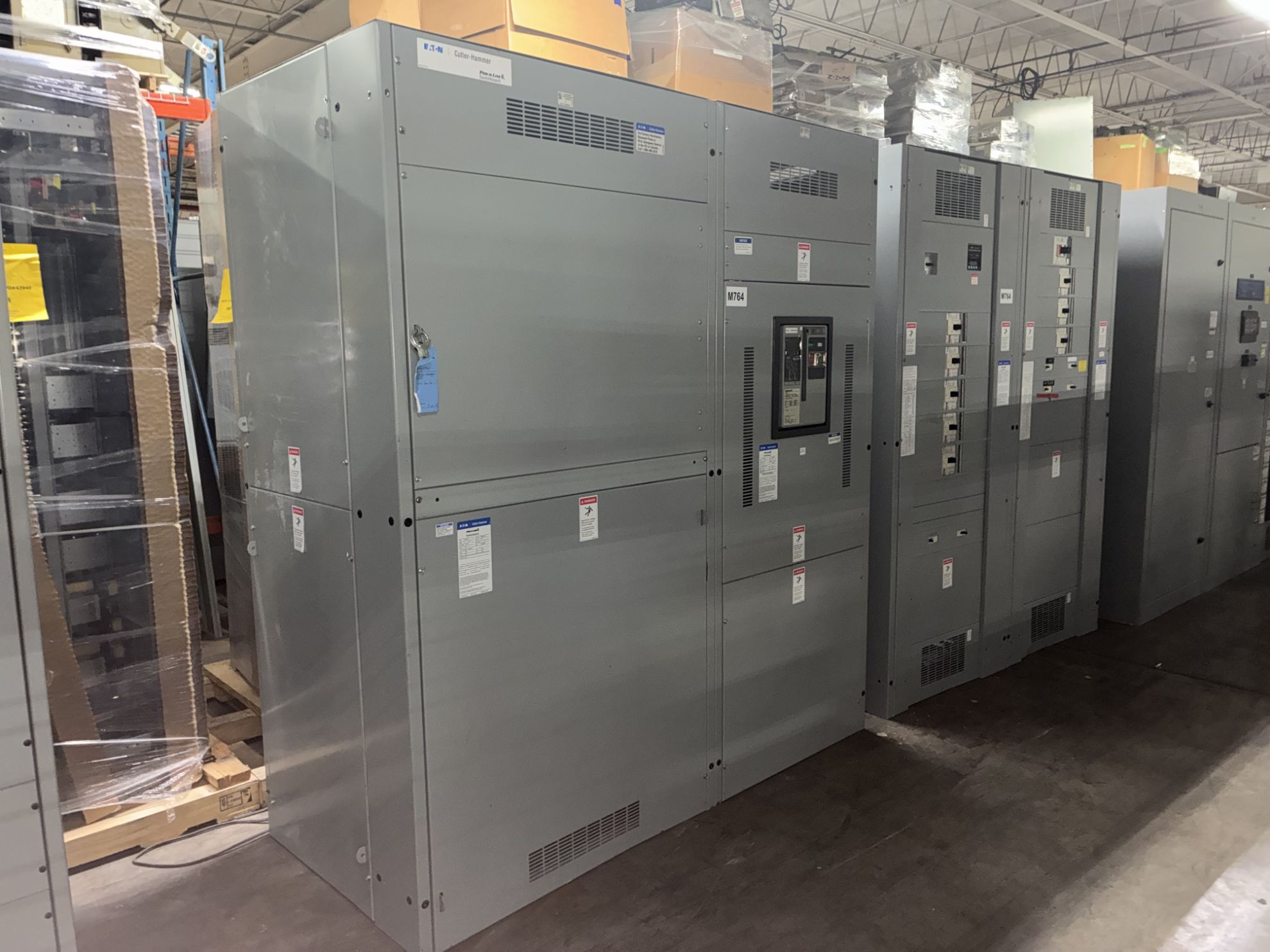

Cutler-Hammer Pow-R-Line Switchboard MDSC30 | 3000 Amp Main Breaker | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Cutler-Hammer Pow-R-Line Switchboard; 3000 amp- Magnum DS MDSC30 main breaker, 480Y/277 volt, 3 phase, 4 wire, NEMA 1 indoor rated. With Digitrip 520 trip unit- cat # 5LSIG, LSIG functions, ground fault, 3000 amp rating plug, auxiliary switches- 2A/2B. With (1) Pull section & (2) -Series breaker distribution sections. Reconditioned & guaranteed with a one-year warranty.

4 Sections: From Left to Right

Pull/ Empty Panel

Main Breaker Panel

• 3000 Amp Magnum DS Main Breaker
  • Cat # MDSC303HEA 305GA MNN2E CNNAX
  • 3 Pole
  • MSDC30
  • Digitrip 520 Trip Unit
    • Cat # 5LSIG
    • LSIG functions
    • Ground Fault
  • 3000 Amp Rating Plug
    • Cat # 5720B33G17

C-Series Distribution Panel 1

• Clipper Power System
  • SuperVisor Display
  • 300 kA
• (5) HKD3400F
  • 400 Amp
  • KT3400T Trip Unit
    • 400 Amp
• (1) 200 Amp
• (1) 100 Amp
• (1) HFD3030
  • 30 Amp

C-Series Distribution Panel 2

• (1) LGH3630NN
  • 630 Amp Max
  • L630H
  • 600 Amp Trip
• (3) HKD3400F
  • 400 Amp
  • KT3400T Trip Unit
    • 400 Amp
• (2) 200 Amp
• (1) 100 Amp
• (1) 80 Amp

Dimensions:

• Pull/ Empty
  • 45" Width
  • 36" Depth
  • 90" Height

• Main
  • 36" Width
  • 36" Depth
  • 90" Height

• Distribution 1
  • 36" Width
  • 36" Depth
  • 90" Height

• Distribution 2
  • 36" Width
  • 36" Depth
  • 90" Height

M-764                              LOC: Across from SPR-E5
