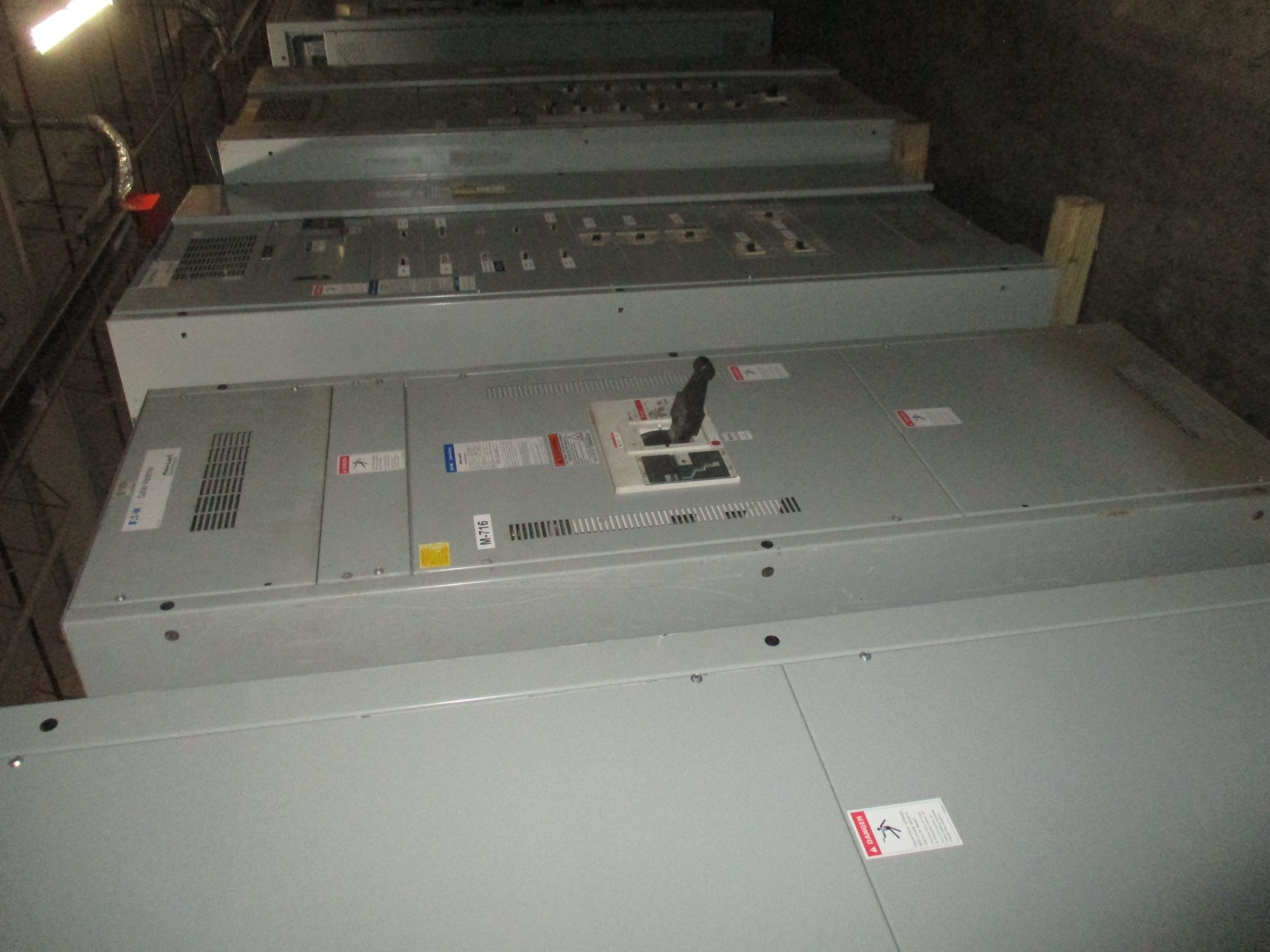

Eaton Pow-R-Line Switchboard RD316T32W | 1600 Amp Main Breaker | 208Y/120V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Eaton Pow-R-Line Switchboard; 1600 amp main breaker- cat # RD316T32W, 208Y/120 volt, 3 phase, 4 wire, LSI functions, NEMA 1 indoor rated. With 1 section of breaker distribution. Reconditioned & guaranteed with a one-year warranty.

2 Sections: From Left to Right

Main Breaker Panel

• 1600 Amp Max
• RD 65K
• Cat # RD316T32W
• Digitrip RMS 310 Trip Unit
  • Cat # RES1600LSI
  • LSI functions
• Digitrip RMS 310 Rating Plug
  • 1600 Amp
  • Cat # 16RES16T

Breaker Distribution Panel

• (1) 800 Amp
  • Cat # HMDL3800F
  • 800 Amp Trip Unit
    • MES3800LSI
  • 600 Amp Rating Plug
    • 8MES600T
• (6) 400 Amp
  • Cat # HKD3400F
  • 250 Amp Trip Unit
    • KES3250LS
  • 200 Amp Rating Plug
    • 2KES200T
• (2) 400 Amp
  • Cat # HKD3400F
  • 125 Amp Trip Unit
    • KES3125LS
  • 125 Amp Rating Plug
    • 1KES125T
• (1) 400 Amp
  • Cat # HKD3400F
  • 400 Amp Trip Unit
    • KES3400LS
  • 300 Amp Rating Plug
    • 4KES300T
• (1) 400 Amp
  • Cat # HKD3400F
  • 400 Amp Trip Unit
    • KES3400LS
  • 400 Amp Rating Plug
    • 4KES400T
• (1) 400 Amp
  • Cat # HKD3400T
  • 200 Amp Rating Plug
    • KT3200T
• (1) 50 Amp
• (1) 35 Amp
• (1) 20 Amp
• (1) 15 Amp

Dimensions:

• Main
  • 30" Width
  • 30" Depth
  • 90" Height

• Distribution
  • 45" Width
  • 30" Depth
  • 90" Height
