Eaton Pow-R-Line Switchboard RD325T36W | 2500 Amp Main Breaker | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Eaton Pow-R-Line Switchboard; 2500 amp breaker main- cat # RD325T36W, 480Y/277 volt, 3 phase, 4 wire, LSIG functions, ground fault, NEMA 1 indoor rated. With breaker distribution panel. Reconditioned & guaranteed with a one-year warranty.

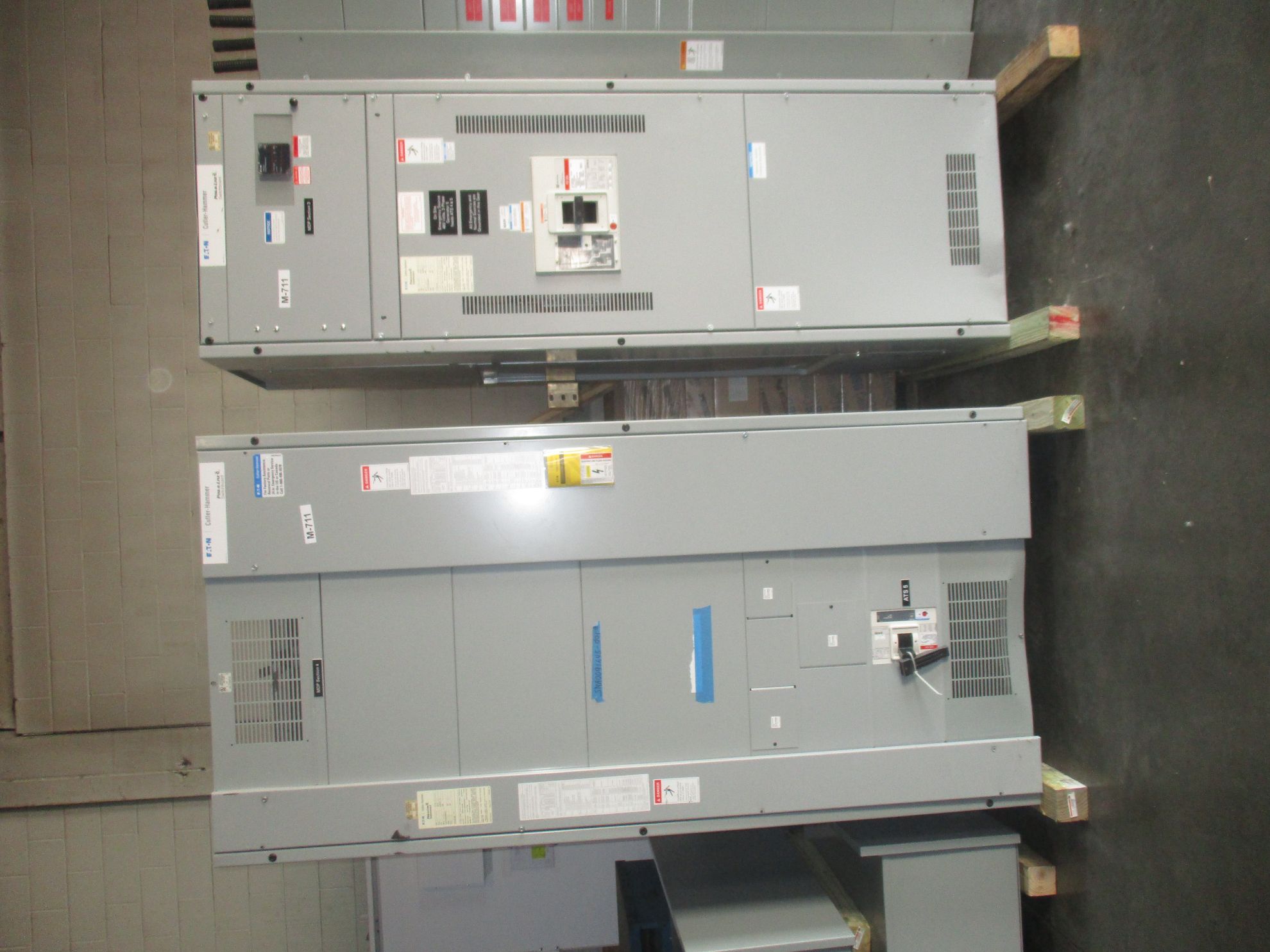

2 Sections: From Left to Right

Main Breaker Panel

• Eaton SPD Series Surge Protective Device
• 2500 Amp Main Breaker
  • RD 65K
  • Cat # RD325T36W
  • Digitrip 310 Trip Unit
    • Cat # RES2500LSIG
    • Groud Fault
  • Digitrip RMS 310 Rating Plug
    • 2500 Amp
    • 25RES25T

Breaker Distribution 1 Panel

• (1) 1200 Amp Breaker
  • HND 65K
  • Cat # HND312T33W
  • Digitrip RMS 310 Rating Plug
    • Cat # A12NES1200T1
    • 1200 Amp
  • Digitrip RMS 310 Trip Unit
    • Short Delay

Dimensions

• Main Panel
  • 30" Width
  • 30" Depth
  • 90" Height

• Distribution Panel
  • 45" Width
  • 30" Depth
  • 90" Height
