Eaton Pow-R-Line Switchboard MDSC4N | 4000 Amp Main Breaker | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Eaton Pow-R-Line Switchboard; 4000 amp main breaker- cat # MDSC4N3HEA, 480Y/277 volt, 3 phase, 4 wire, LSIG functions, ground fault, NEMA 1 indoor rated. With breaker distribution panels. Reconditioned & guaranteed with a one-year warranty.

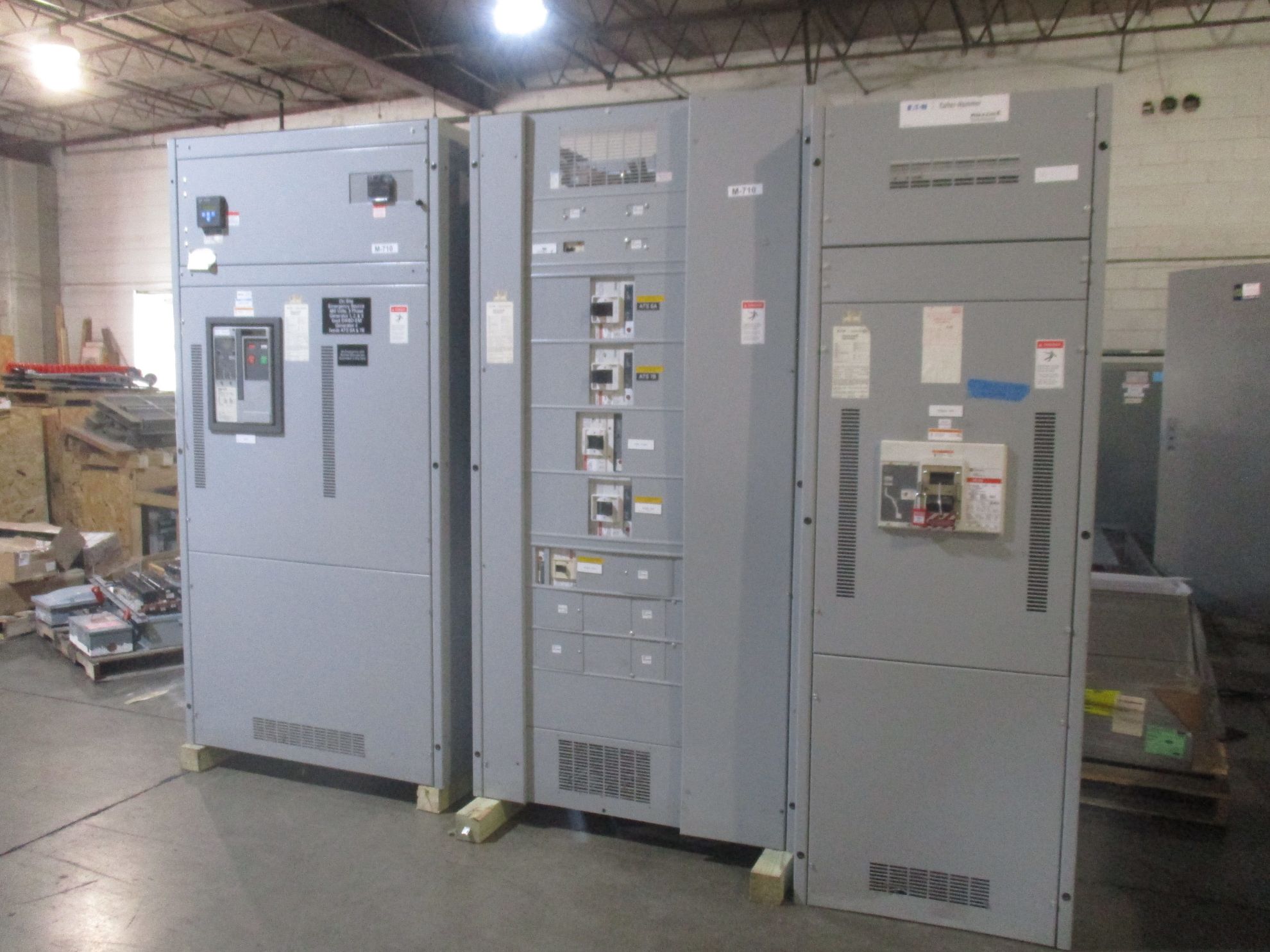

3 Sections: From Left to Right

Main Breaker Panel

• Eaton SPD Series Surge Protective Device
• Eaton IQ Device
• Magnum DS 4000 Amp Main Breaker
  • MDSC4N
  • Cat # MDSC4N3HEA 40MMN MNNNE NNNAX
  • Digitrip 520M Trip Unit
    • Cat # 5MLSIG
    • Ground Fault

Breaker Distribution 1 Panel

• (2) 1200 Amp Breaker
  • HND 65K
  • Cat # HND312T32W
  • Digitrip RMS 310 Rating Plug
    • Cat # 12NES1200T
      • 1200 Amp
  • Digitrip RMS 310 Trip Unit
    • Short Delay
• (1) 1200 Amp Breaker
  • HND 65K
  • Cat # HND312T33W
  • Digitrip RMS Rating Plug

    • Cat # 12NES1200T
    • 1200 Amp
  • Digitrip RMS 310 Trip Unit
    • Short Delay
• (1) 600 Amp Breaker
  • Cat # HLD3600F
  • Digitrip RMS 310 Rating Plug
    • 6LES500T
    • 500 Amp
  • Digitrip RMS 310 Trip Unit
    • Cat # LES3600LS
    • LS Functions
• (1) 400 Amp Breaker
  • Cat # HKD3400F
  • Digitrip RMS 310 Trip Unit
    • Cat # KES3400LS
    • LS Functions
• (1) 100 Amp Breaker

Breaker Distribution 2 Panel

• 2000 Amp Breaker
  • RD 65k
  • Cat # RD320T33W
  • Digitrip 310 RMS Trip Unit
    • RES2000LS
    • LS Functions
  • Digitrip RMS 310 Rating Plug
    • 20RES20T
    • 2000 Amp

Dimensions

• Main Panel
  • 45" Width
  • 36" Depth
  • 90" Height

• Distribution 1 Panel
  • 45" Width
  • 36" Depth
  • 90" Height

• Distribution 2 Panel
  • 30" Width
  • 36" Depth
  • 90" Height

M-710                            LOC: Pillar 114
