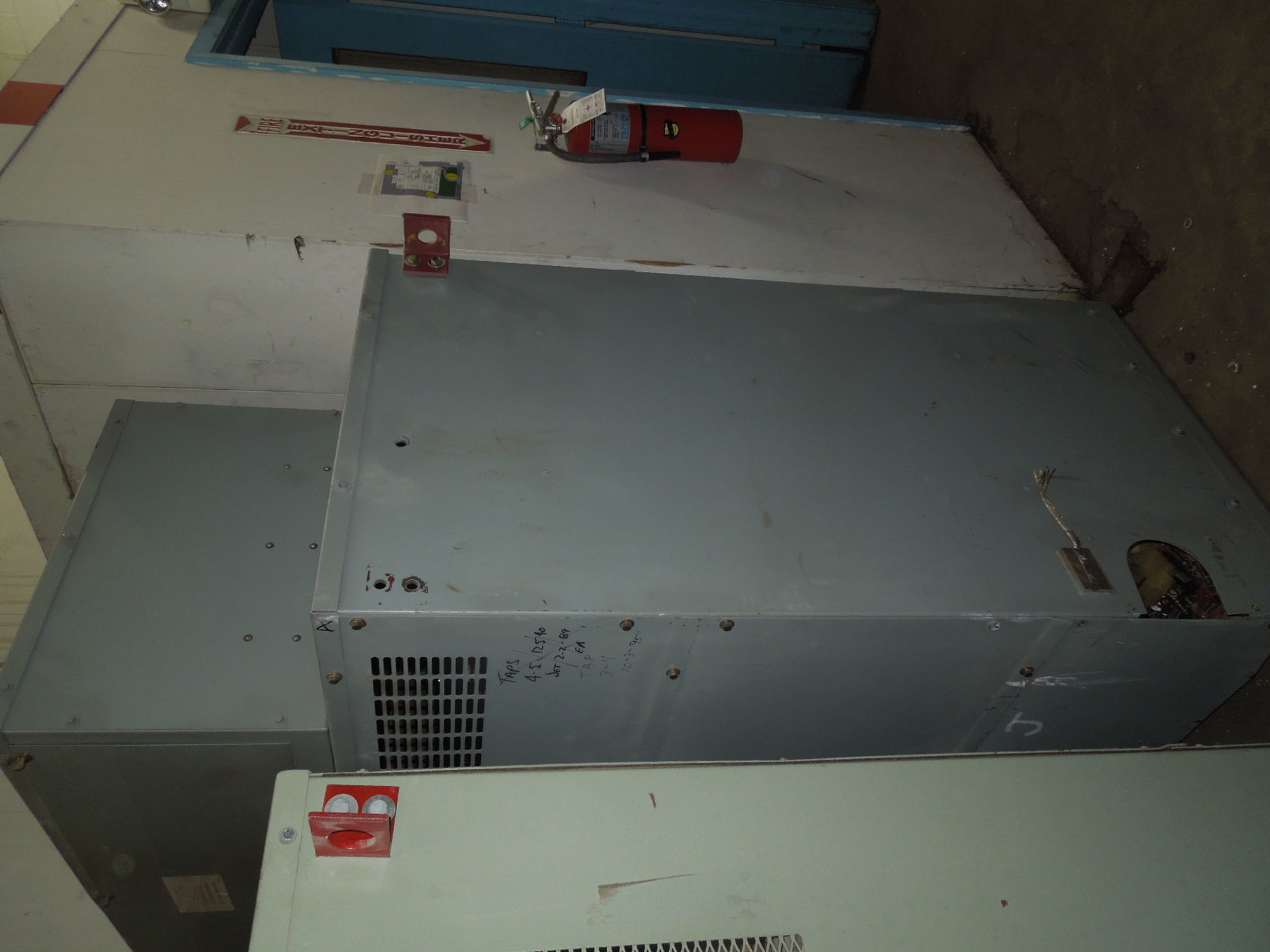

Federal Pacific 500 KVA 13200-480Y/277 Volt Medium Voltage Dry Type Transformer R&G

Product description:

Federal Pacific Medium Voltage Dry Type Transformer; 500 KVA, high voltage: 13200 volt, low voltage: 480Y/277 volt, 3 phase, 60 Hz, NEMA 1 indoor rated. Reconditioned & guaranteed with a 1 year warranty.

  • Serial # 50188-006
  • 100°C Temp Rise
  • 5.56 Impedence %
  • Taps:
    • 13200
    • 12870
    • 12540
    • 12210
    • 11880
  • NEMA 1 Enclosure
  • 4100 lbs
  • Aluminum Wound

LOC: Recess Dock

Specs:

  • Manufacturer : Federal Pacific
  • KVA : 500
  • Primary Voltage : 13200
  • Secondary Voltage : 480Y/277V
  • Phase : 3
  • Indoor/Outdoor : Indoor
  • Material : Aluminum
  • Condition : Refurbished
SKU: MVDT346
$7,500.00
