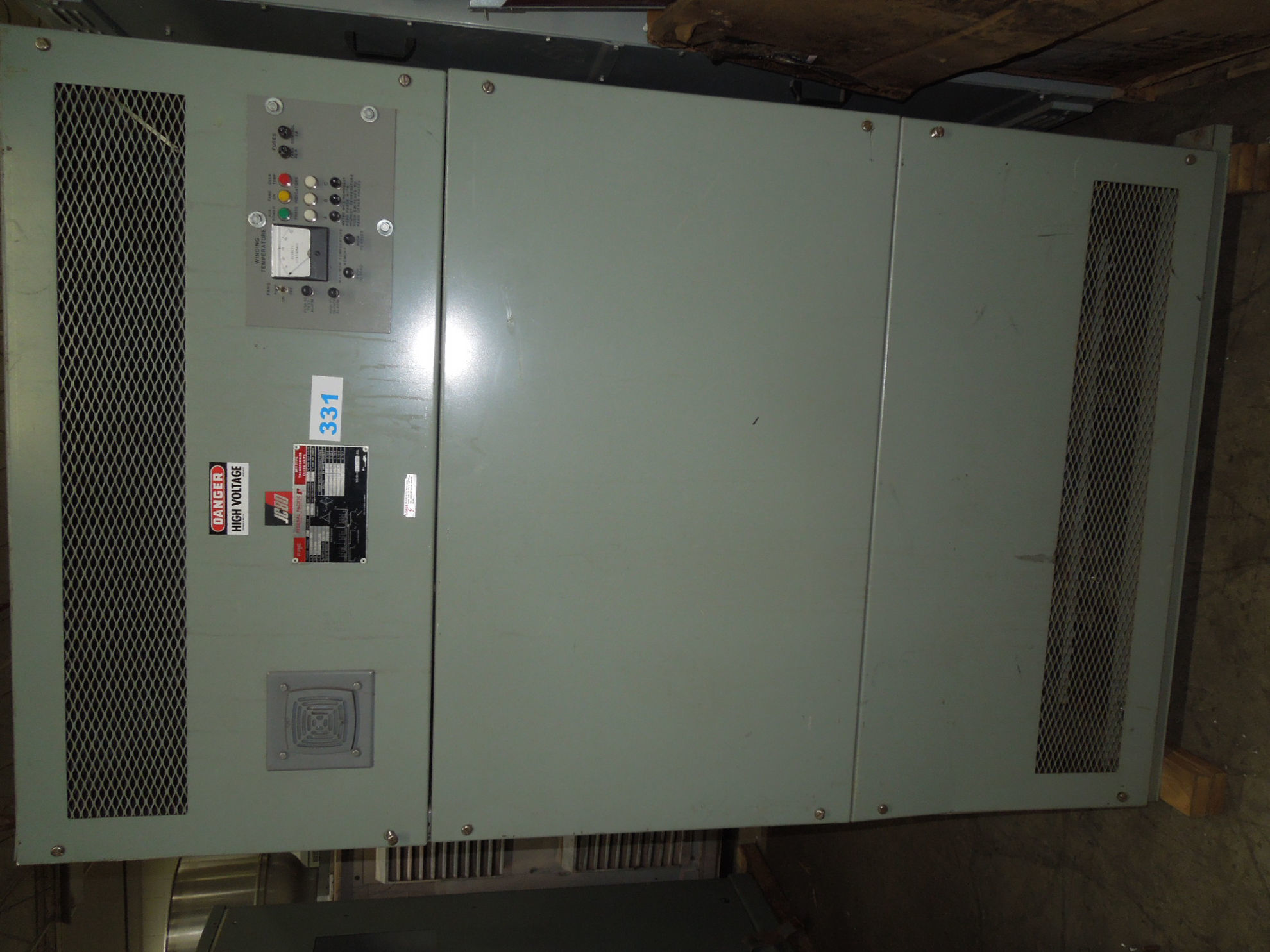

FPE 300/400 KVA 4160-208Y/120 Volt Medium Voltage Dry Type Transformer R&G

Product description:

Federal Pacific Electric Medium Voltage Dry Type Transformer; 300/400 KVA, high voltage: 4160 volt, low voltage: 208Y/120 volt, 3 phase, 60 Hz, NEMA 1 indoor rated. Reconditioned & guaranteed with a 1 year warranty.

  • Model # 11035-001
  • Impedance: 5.52%
  • 150°C Temp Rise
  • Conductor:
    • Taps:
      • 4368V
      • 4264V
      • 4160V
      • 4056V
      • 3952V
  • NEMA 1 Enclosure
  • Weight: 1615 lbs
  • Reconditioned with 1 Year Warranty

Dimensions: 81.25"H x 50"W x 38"D

LOC: SW Corner

Specs:

  • Manufacturer : Federal Pacific
  • KVA : 300/400
  • Primary Voltage : 4160
  • Secondary Voltage : 208Y/120V
  • Indoor/Outdoor : Indoor
  • Phase : 3
  • Condition : Refurbished
Brand: FPE
SKU: MVDT331
$4,500.00
