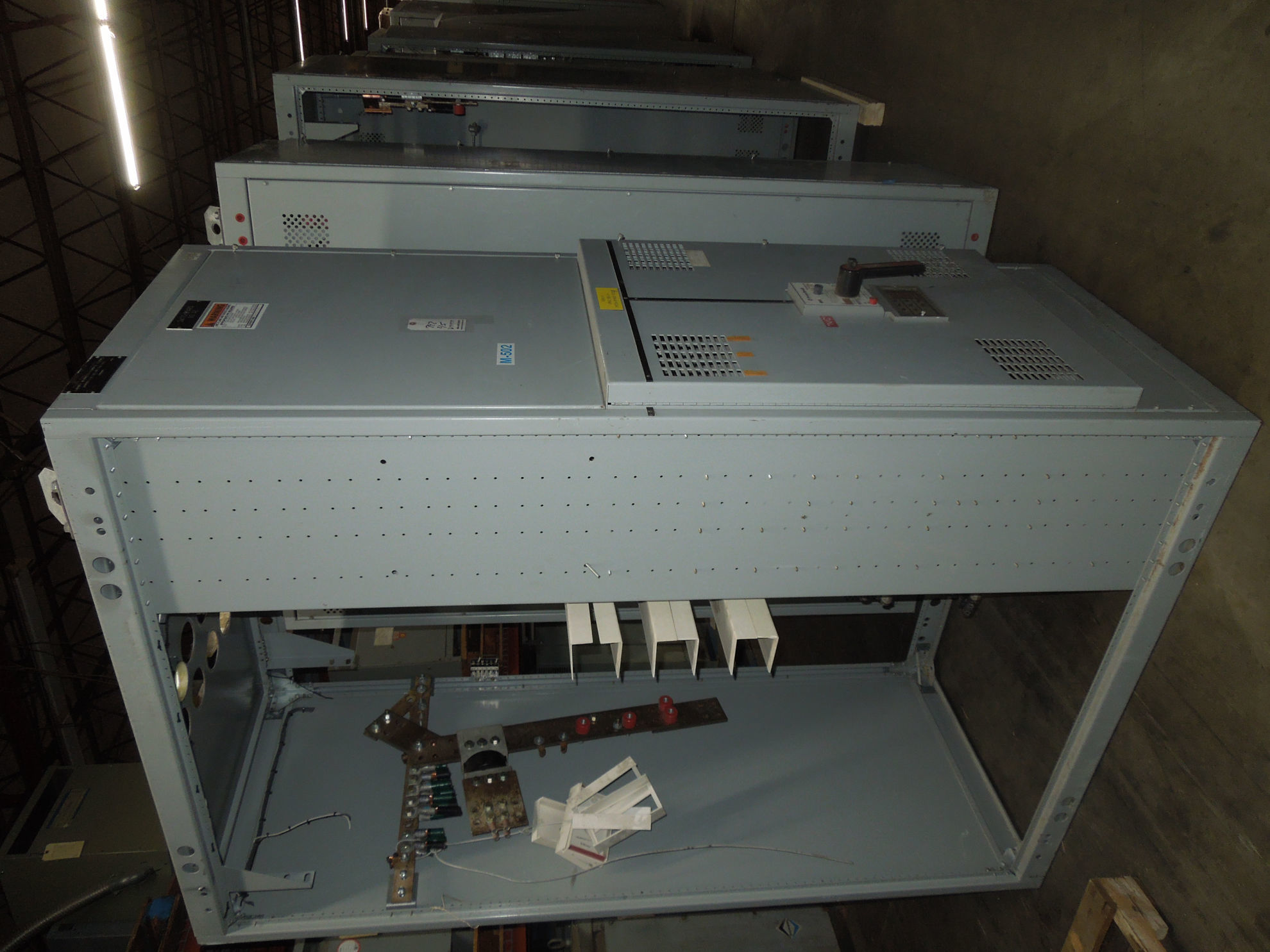

General Electric Power Break Switchboard TPVVF8630FCE1 | 3000 Amp Main Breaker | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

General Electric Power Break Switchboard; 3000 amp main breaker- cat # TPVVF8630FCE1, 480Y/277 volt AC, three phase, four-wire, LSIG functions, ground fault, NEMA 1 indoor rated. With (1) section of power break distribution. Reconditioned & guaranteed with a one year warranty.

2 Sections: From Right to Left

Power Break Main Panel

• Cat# TPVVF8630FCE1
• 3000 Amp
• 480Y/277 Volt
• Control Voltage 120 VAC
• Serial# V 73945
• 3 Phase
• 4 Wire
• MicroVersaTrip
  • Cat# TP9VT30SLGA3
  • LSIG Functions
  • Ground Fault

 Power Break Distribution

• (1) 800 Amp
  • Cat# THP88TTE1
  • 480 Volt
  • Control voltage- 120 VAC
  • RMS-9 MicroVersaTrip
    • Cat# C208LSIG
    • LSIG Functions
    • Rating Plug- TR8B800

• (1) 800 Amp
  • Cat# THP88SSE1
  • 480 Volt
  • Control Voltage- 120 VAC
  • RMS-9 MicroVersaTrip
    • Cat# TS20LSIGT2
    • LSIG Functions
    • Rating Plug- TR8S800
• (1) 800 Amp
  • Cat# THPVVF3608E1
  • MicroVersaTrip
    • Cat# TP9VT20SLGA3

Dimensions:

• Power Break Main Panel

  • 35" Width
  • 62" Depth
  • 90" Height

• Distribution 1
  • 25" Width
  • 60" Depth
  • 90" Height
