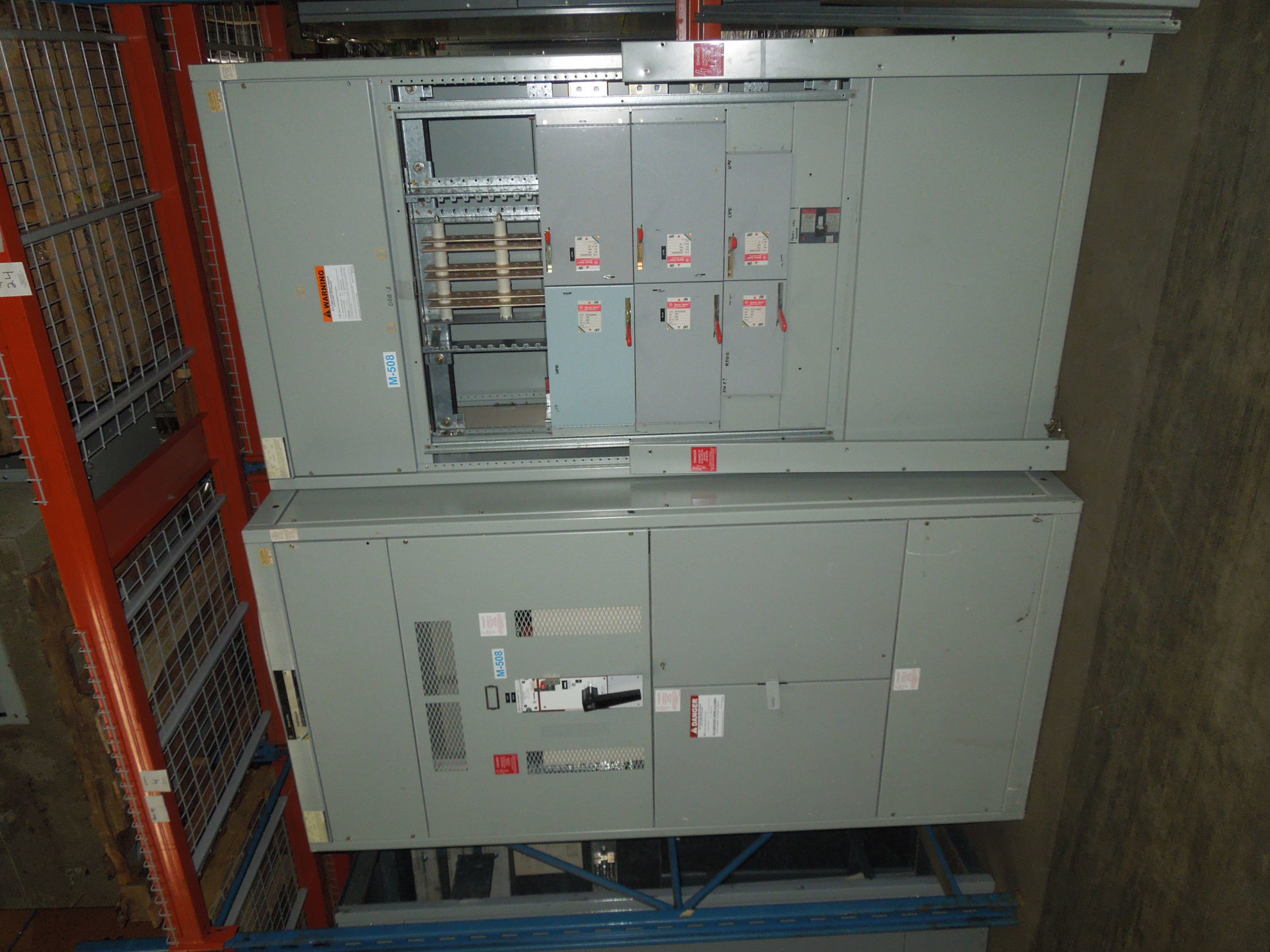

General Electric Spectra Series Switchboard THPR3608B | 800 Amp Main Fusible | 480V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

General Electric Spectra Series Switchboard; 800 amp fusible main high pressure contact switch- cat # THPR3608B, 480 volt AC, three phase, four-wire, NEMA 1 indoor rated. With (1) ADS fusible distribution panel. Reconditioned & guaranteed with a one year warranty.

2 Sections: From Left to Right

Main Fusible Panel

• High Pressure Contact Switch
• Cat# THPR3608B
• 800 Amp
• 480 Volt
• 3 Poles
• 3 Phase
• 4 Wire
• NEMA 1 Indoor Rated

 ADS Fusible Distribution Section

• (1) 250 Amp Spectra RMS Breaker
  • Cat# SFLA36AT0250
  • 480 Volt
  • Rating Plug
    • 200 Amp
    • SRPF250A200

• (1) 200 Amp
  • Cat# ADS36200HK
  • 480 Volt
  • 150 Max H.P.

• (1) 200 Amp
  • Cat# ADS36200HS
  • 480 Volt
  • 150 Max H.P.

• (1) 200 Amp
  • Cat# ADS36200HD
  • 480 Volt
  • 150 Max H.P.

• (1) 100 Amp
  • Cat# ADS36100HD
  • 100 Amp
  • 480 Volt
  • 75 Max H.P.

Dimensions:

• Spectra Series Fusible Main Panel

  • 45" Width
  • 35" Depth
  • 90" Height

• Distribution 1
  • 45" Width
  • 35" Depth
  • 90" Height
