Siemens FC II Series 6 Switchboard CBC-3033-B | 3000 Amp Fusible Main | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Siemens FC II Series 6 Switchboard; 3000 amp fusible main switch- cat # CBC-3033-B, 480Y/277 volt, 3 phase, 4 wire, ground fault, NEMA 1 indoor. With (2) ITE vacu-break switch fusible distribution panels. Reconditioned & guaranteed with a one-year warranty.

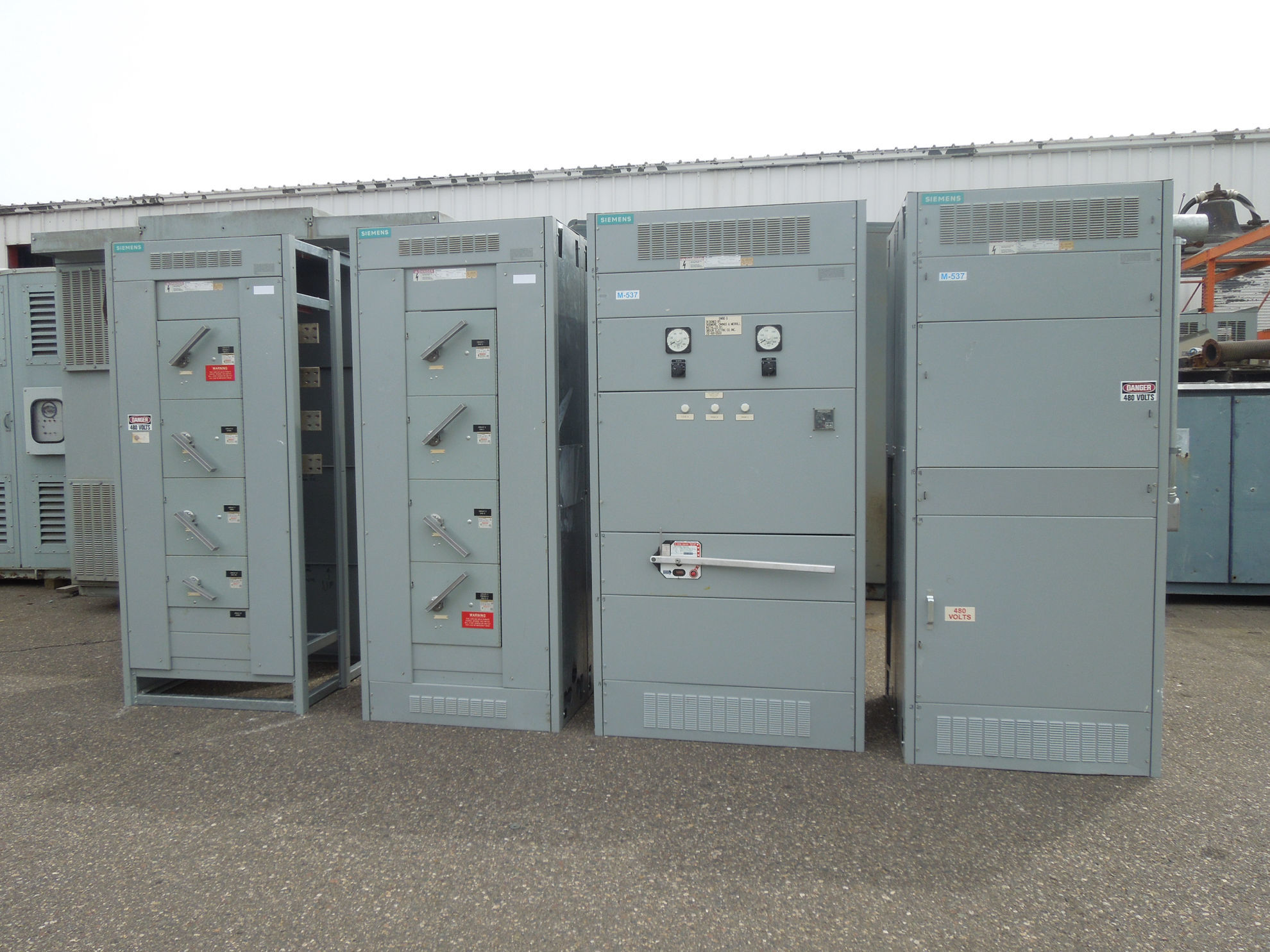

4 Sections: From Right to Left

Pull/Empty Panel

Main Fusible Switch Panel

  • Pringle Main Fusible
    • 3000 Amp
    • 480 Volt
    • 60Hz
    • Serial# F50845S
    • Cat# CBC-3033-B
    • Dwg# M-57480
  • Ground Fault Relay
    • Cat# GFL 259-1200
  • Metering
  • Blown Fuse Indicating Lights

Fusible ITE Vacu-Break Switch Distribution Panel 1

  • (2) 600 Amps
    • Cat# V7H3606
    • 480 Volts
    • 3 Poles
    • 3 Phase
  • (2) 400 Amps
    • Cat# V7H3605
    • 480 Volts
    • 3 Poles
    • 3 Phase

Fusible ITE Vacu-Break Switch Distribution Panel 2

  • (2) 600 Amps
    • Cat# V7H3606
    • 480 Volts
    • 3 Poles
    • 3 Phase
  • (1) 400 Amps
    • Cat# V7H3605
    • 480 Volts
    • 3 Poles
    • 3 Phase
  • (1) 200 Amps
    • Cat# V7F3604
    • 480 Volts
    • 3 Poles
    • 3 Phase

Dimensions:

Pull/ Empty Panel

  • 38" Width
  • 38" Depth
  • 90" Height

Main Fusible Switch Panel

  • 46" Width
  • 38" Depth
  • 90" Height

Fusible Distribution Panel 1

  • 38" Width
  • 38" Depth
  • 90" Height

Fusible Distribution Panel 2

  • 38" Width
  • 38" Depth
  • 90" Height

M-537        LOC: Air Breaker Aisle

Specs:

  • Manufacturer : Siemens, ITE
  • Main Type : Fusible
  • Style : Fusible
  • Amperage : 3000
  • Voltage : 480Y/277
  • Phase : 3
  • Wire : 4
  • Ground Fault : Yes
  • Indoor/Outdoor : Indoor
  • Condition : Refurbished
Brands: ITE , Siemens
Availability: In stock
SKU: M537
Contact us for pricing:
1-800-328-1842
