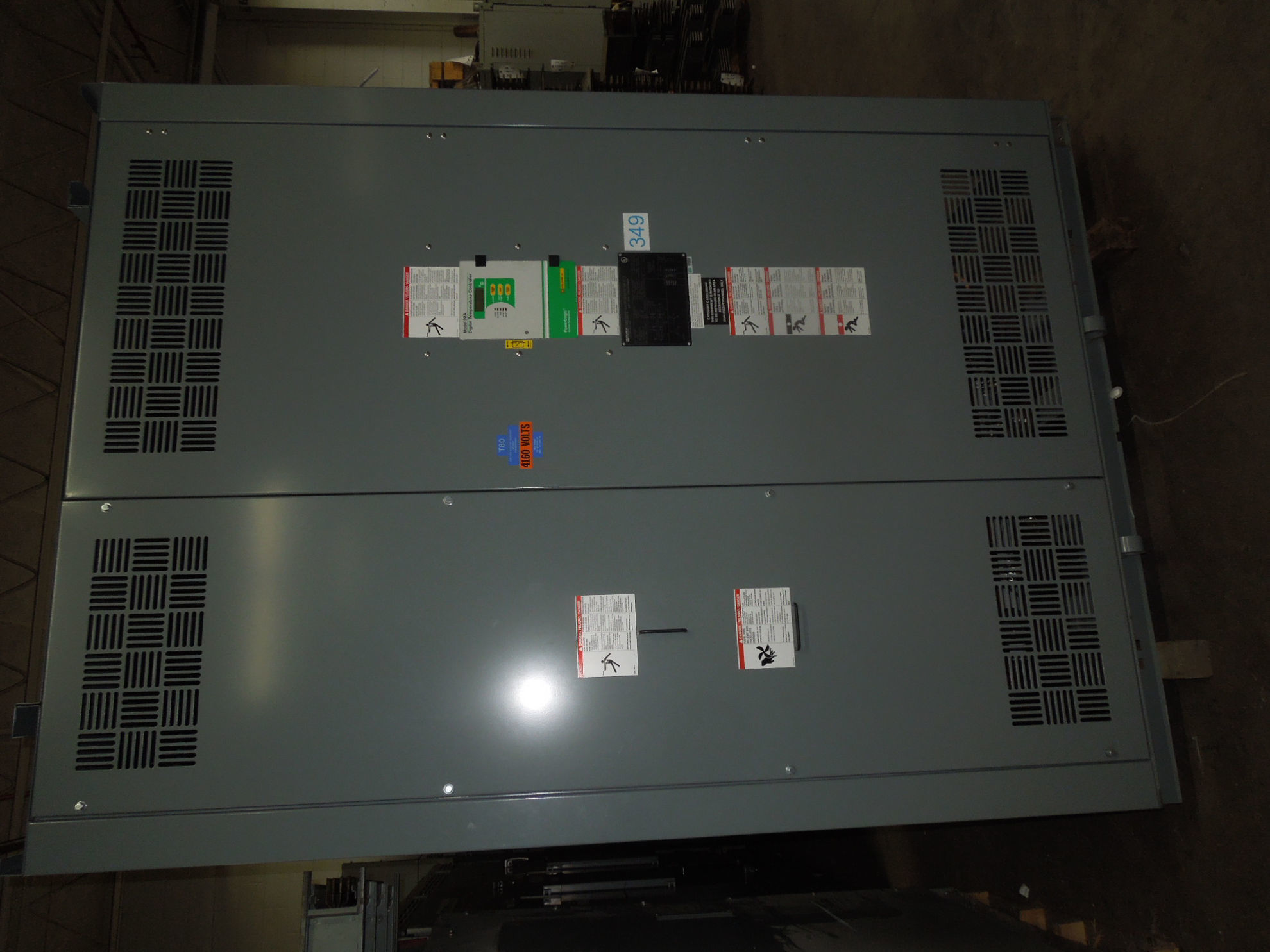

Square D 750/1000 KVA 4160-208Y/120 Volt Medium Voltage Dry Type Transformer R&G

Product description:

Square D Medium Voltage Dry Type Transformer: 750/1000 KVA, primary voltage: 4160 volt, secondary voltage: 208Y/120 volt, 3 phase, 60 Hz, NEMA 1 indoor rated. Reconditioned & guaranteed with a one-year warranty.

• Serial # 36065352-008-01-1
• 150°C Temp Rise
• 5.61 Impedence %
• Taps:
  • 4368
  • 4264
  • 4160
  • 4056
  • 3952
• NEMA 1 Enclosure
• 6200 lbs
• Copper Wound

Dimensions: 72" Width x 60" Depth x 102" Height
