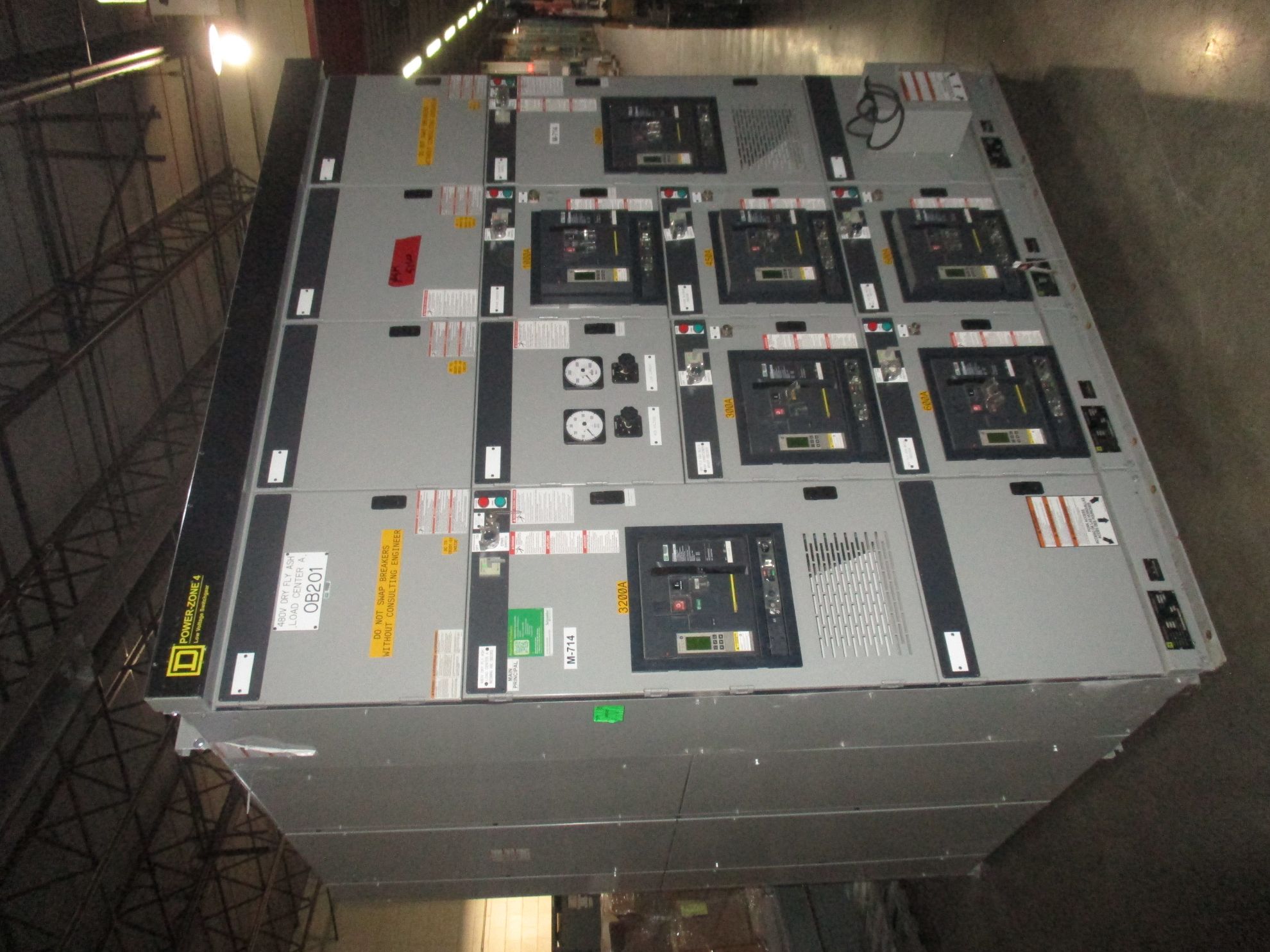

Square D Main Tie Main Power-Zone 4 Switchboard 3200 Amp 480 Volt 3 Ph 3 W NEMA 1 R&G

Product description:

Square D Main-Tie-Main Power-Zone 4 Switchboard; 3200 amp, 480 volt, ground fault, 3 phase, 3 wire. NEMA 1 indoor. With MasterPact breaker distribution. Reconditioned & guaranteed with a one year warranty.

2 Sections

Main Tie Main Panel 1

• (2) 3200 Amp Main Breaker
  • NW 32 H2
  • Cat # WA5JJR64B3DGFFWXKAV
  • Micrologic 6.0 P
• (1) 1600 Amp Breaker
  • NW 16 H1
  • Cat # WA4EBR63A3CGFFWXJA
  • Micrologic 5.0 P
• (4) 800 Amp Breaker
  • Cat # WA4ATR63B3CGFFWXJA
  • Micrologic 5.0 P

Main Tie Main Panel 2

• (1) 3200 Amp Main Breaker
  • NW 32 H2
  • Cat # WA5JJR64B3DGFFWXKAV
  • Micrologic 6.0 P
• (1) 1600 Amp Breaker
  • NW 16 H1
  • Cat # WA4EBR63A3CGFFWXJA
  • Micrologic 5.0 P
• (4) 800 Amp Breaker
  • Cat # WA4ATR63B3CGFFWXJA
  • Micrologic 5.0 P

 Dimensions:

• Main Tie Main 1
  • 88" Width
  • 72" Depth
  • 94" Height

• Main Tie Main 2
  • 66" Width
  • 73" Depth
  • 94" Height

M-714         LOC: Loading Docks
