Square D MasterPact NW16L1 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O

Home > Circuit Breakers > Molded & Insulated Case Circuit Breakers > Square D MasterPact NW16L1 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O

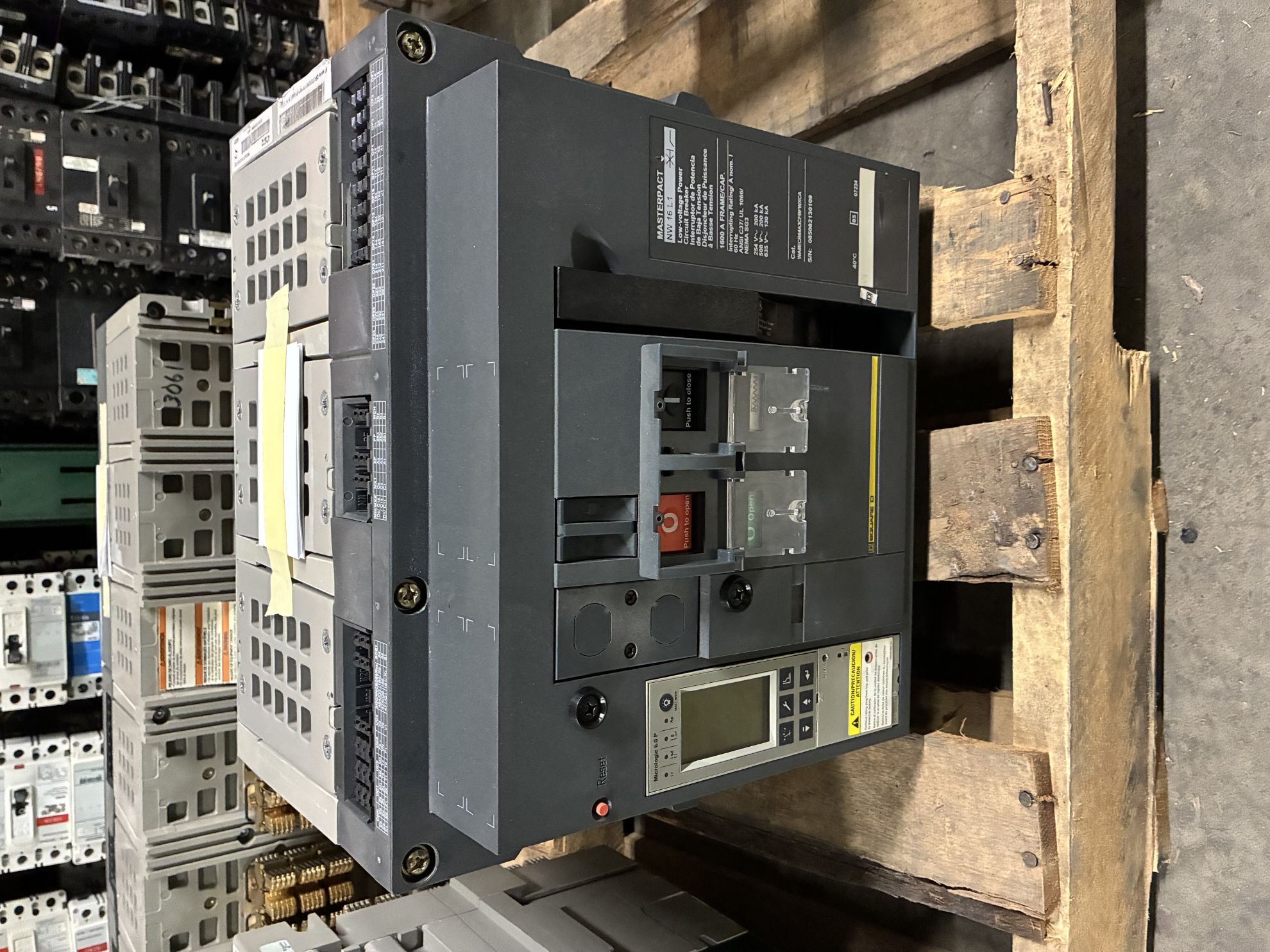

Picture of Square D MasterPact NW16L1 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16L1 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16L1 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16L1 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16L1 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16L1 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Picture of Square D MasterPact NW16L1 Circuit Breaker 1600 Amp 600 Volt AC E/O D/O
Be the first to review this product

Product description:

Square D NW16L1 MasterPact circuit breaker; cat # WA8ECR64A3CFBFWXCA, 1600 amp frame, 600 volt AC, three pole, 1200 amp rated, electrically operated (E/O), draw-out (D/O). Used tested with report.

  • Micrologic 6.0 P trip unit
    • LSIG functions
    • ground fault
  •  Spring charging motor
    •  100-130 volt AC
  •  Shunt trip
    • 24-30 volt AC/DC
  •  Closing coil
    • 100-130 volt AC/DC
  •  2nd overcurrent trip switch
  • Interrupting Ratings
    • 508 Volt @ 200 kA

MC-CB # 2289 -- LOC: B5H1

Specs:

  • Manufacturer : Square D
  • Family : Masterpact
  • Frame : NW
  • Amperage : 1600
  • Voltage : 600V
  • Poles : 3
  • Ground Fault : Yes
  • Shunt Trip : Yes
  • Functions : LSIG - Long-Time, Short-Time, Instantaneous, Ground
  • Operation : Electric
  • Fixed Mount or Draw Out : Draw Out
  • Condition : Used
Brand: Square D
Availability: In stock
SKU: MCCB2289
$3,900.00
