Square D QED Power Style Switchboard BP03612 | 1200 Amp Fusible Dual Mains | 480V 3-Phase 3-Wire | NEMA 1 R&G

Product description:

Square D QED Power Style Switchboard; 1200 amp fusible dual mains- cat # BP03612, 480 volt, 3 phase, 3 wire, ground fault, NEMA 1 indoor rated. With (2) sections of I-line breaker distribution panels. Reconditioned & guaranteed with a one-year warranty.

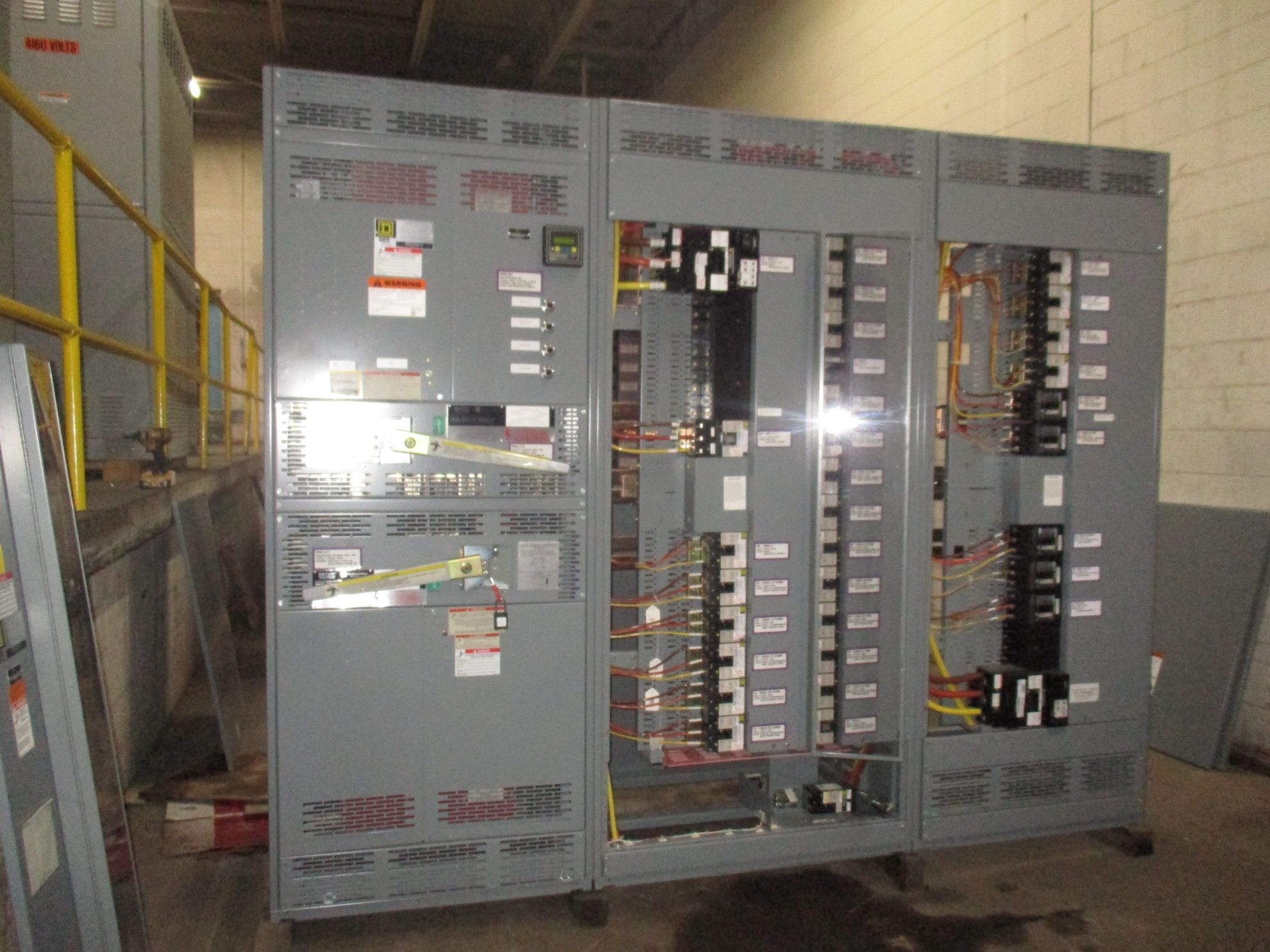

3 Sections: From Left to Right

Dual Main Fusible Panel

• PowerLogic Power Meter
• (1) 1200 Amp Dual Main
  • Cat # BP03612
• (1) 1200 Amp Dual Main
  • Cat # BP03612I

I-line Breaker Dist 1 Panel

• (1) LX36400G
  • 400 Amp
  • LSIG Functions
  • Rating Plug
• (1) KC34225
  • 225 Amp
• (1) KC34150
  • 150 Amp
• (1) FHL26000M4200
  • 100 Amp
  • 2 Pole
• (7) FC34080
  • 80 Amp
• (1) FC34070
  • 70 Amp
• (1) HJA36060SA
  • 60 Amp
• (7) FC340401021
  • 30 Amp
• (1) FI360201021
  • 20 Amp
• (1) FC34020
  • 20 Amp

I-Line Breaker Dist 2 Panel

• (1) LX36400
  • 400 Amp
• (2) HJA36080
  • 80 Amp
• (1) FC34060
  • 60 Amp
• (1) HJA36060
  • 60 Amp
• (2) HJA36030SA
  • 30 Amp
• (3) FC34020
  • 20 Amp

Dimensions:

• Main Panel
  • 36" Width
  • 36" Depth
  • 92" Height

• Distribution 1 Panel
  • 42" Width
  • 36" Depth
  • 92" Height

• Distribution 2 Panel
  • 36" Width
  • 36" Depth
  • 92" Height

M-672                             LOC: Pillar 115/116 Aisle
