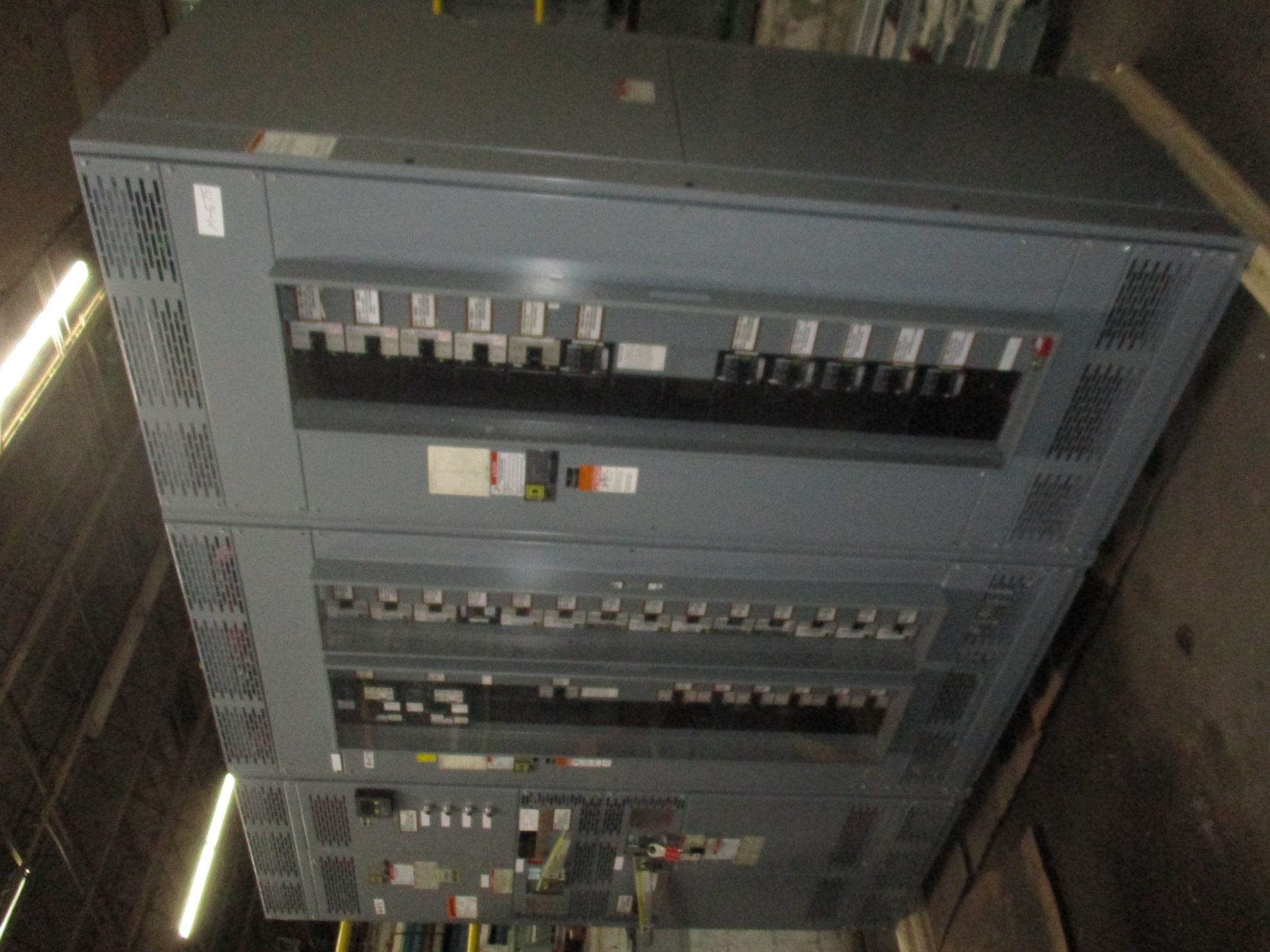

Square D QED Power Style Switchboard BP03612 | 1200 Amp Fusible Dual Mains | 480V 3-Phase 3-Wire | NEMA 1 R&G

Product description:

Square D QED Power Style Switchboard; 1200 amp fusible dual mains- cat # BP03612, 480 volt, 3 phase, 3 wire, ground fault, NEMA 1 indoor rated. With (2) sections of I-line breaker distribution panels. Reconditioned & guaranteed with a one-year warranty.

3 Sections: From Left to Right

Dual Main Fusible Panel

  • PowerLogic Power Meter
  • (1) 1200 Amp Dual Main
    • Cat # BP03612
  • (1) 1200 Amp Dual Main
    • Cat # BP03612I

I-line Breaker Dist 1 Panel

  • (2) LX36400G
    • 400 Amp
    • LSIG Functions
    • Rating Plug
  • (8) FC34080
    • 80 Amp
  • (1) FC34070
    • 70 Amp
  • (1) FC34060
    • 60 Amp
  • (1) HJA36060SA
    • 60 Amp
  • (6) FC340301021
    • 30 Amp
  • (4) FI360201021
    • 20 Amp
  • (1) FC34020
    • 20 Amp

I-Line Breaker Dist 2 Panel

  • (1) HJA36150
    • 150 Amp
  • (1) FC34100
    • 100 Amp
  • (2) HJA36080
    • 80 Amp
  • (1) HJA36060
    • 60 Amp
  • (1) HJA36030SA
    • 30 Amp
  • (4) FC34020
    • 20 Amp

Dimensions:

  • Main Panel
    • 36" Width
    • 36" Depth
    • 92" Height
  • Distribution 1 Panel
    • 42" Width
    • 36" Depth
    • 92" Height
  • Distribution 2 Panel
    • 36" Width
    • 36" Depth
    • 92" Height

M-675                         LOC: Pillar 115/116 Aisle

Specs:

  • Manufacturer : Square D
  • Main Type : Fusible
  • Style : Breaker
  • Amperage : 1200
  • Voltage : 480
  • Phase : 3
  • Wire : 3
  • Ground Fault : Yes
  • Indoor/Outdoor : Indoor
  • Condition : Refurbished
Brand: Square D
SKU: M675
