Square D QED Power Style Switchboard 2500 Amp Fusible Main 208Y/120 Volt 3 Ph 4 W NEMA 1 R&G

Product description:

Square D QED Power Style Switchboard; 2500 amp fusible main, 208Y/120 volt, 3 phase, 4 wire, NEMA 1 indoor rated. With 2 sections of fusible QMBW fusible distribution. Reconditioned & guaranteed with a one year warranty.

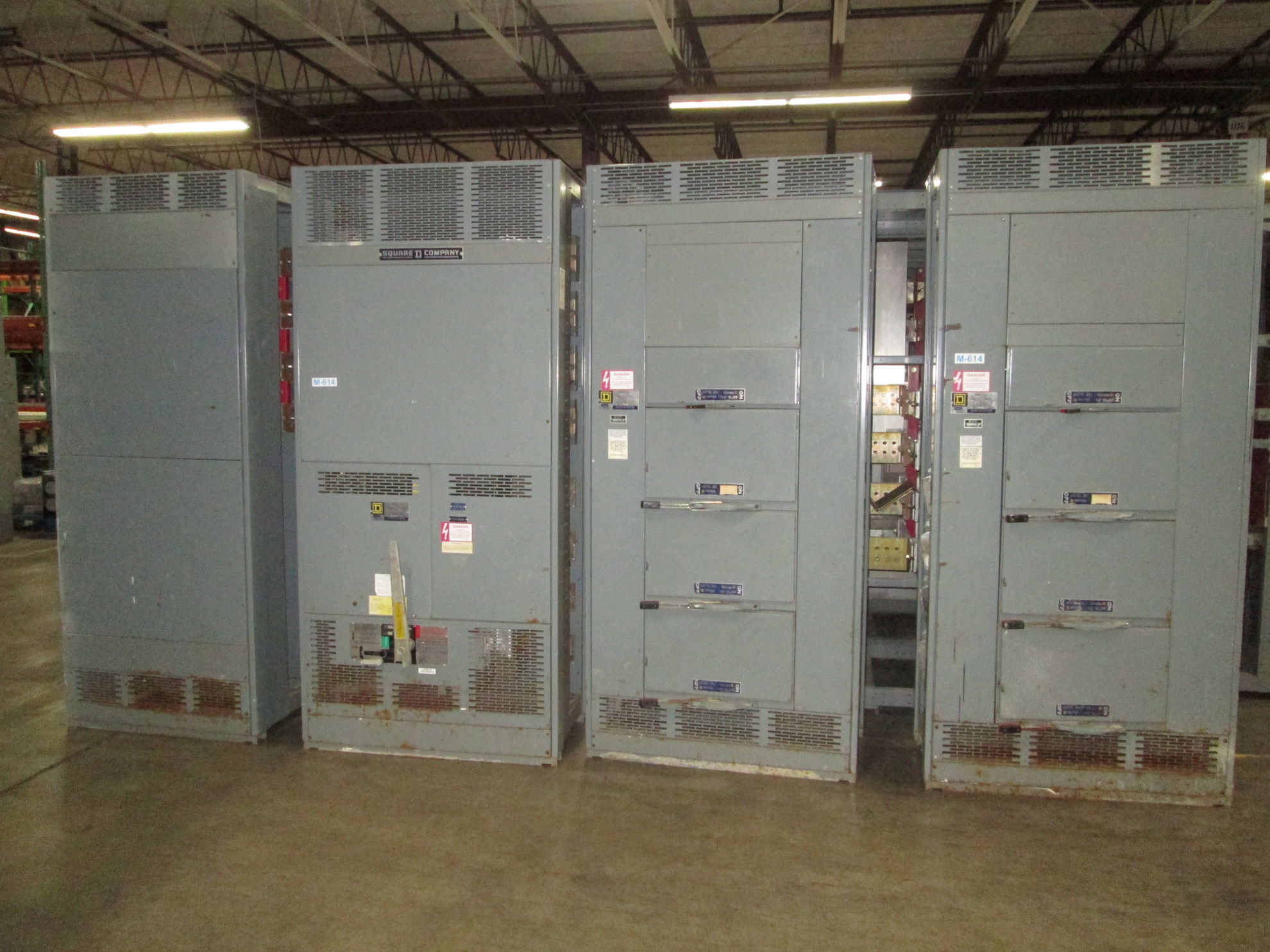

4 Sections: From Left to Right

Empty/ Pull Panel

Fusible Main Panel

  • Type BP Switch Rating
    • 2500 Amp
    • 240 Volt
    • MFG # BP0322250
    • NEMA 1

Fusible Distribution Panel 1

  • (3) 600 Amp
    • Cat# QMB-326W
    • 240 Volts
    • 3 Poles
    • 3 Phase
  • (1) 200 Amp
    • Cat# QMB-324W
      • 240 Volts
      • 3 Poles
      • 3 Phase

Fusible Distribution Panel 2

  • (3) 600 Amp
    • Cat# QMB-326W
    • 240 Volts
    • 3 Poles
    • 3 Phase
  • (1) 200 Amp
    • Cat# QMB-324W
      • 240 Volts
      • 3 Poles
      • 3 Phase

Dimensions:

  • Empty/ Pull
    • 36" Width
    • 24" Depth
    • 91" Height
  • Main Panel
    • 42" Width
    • 24" Depth
    • 91" Height
  • Distribution 1
    • 42" Width
    • 24" Depth
    • 91" Height
  • Distribution 2
    • 42" Width
    • 24" Depth
    • 91" Height

M614          LOC: Pillar 115

Specs:

  • Manufacturer : Square D
  • Main Type : Fusible
  • Style : Fusible
  • Amperage : 2500
  • Voltage : 208Y/120
  • Phase : 3
  • Wire : 4
  • Indoor/Outdoor : Indoor
  • Ground Fault : No
  • Condition : Refurbished
Brand: Square D
SKU: M614
