Square D QED Power Style Switchboard BP03630EI | 3000 Amp Fusible Main | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

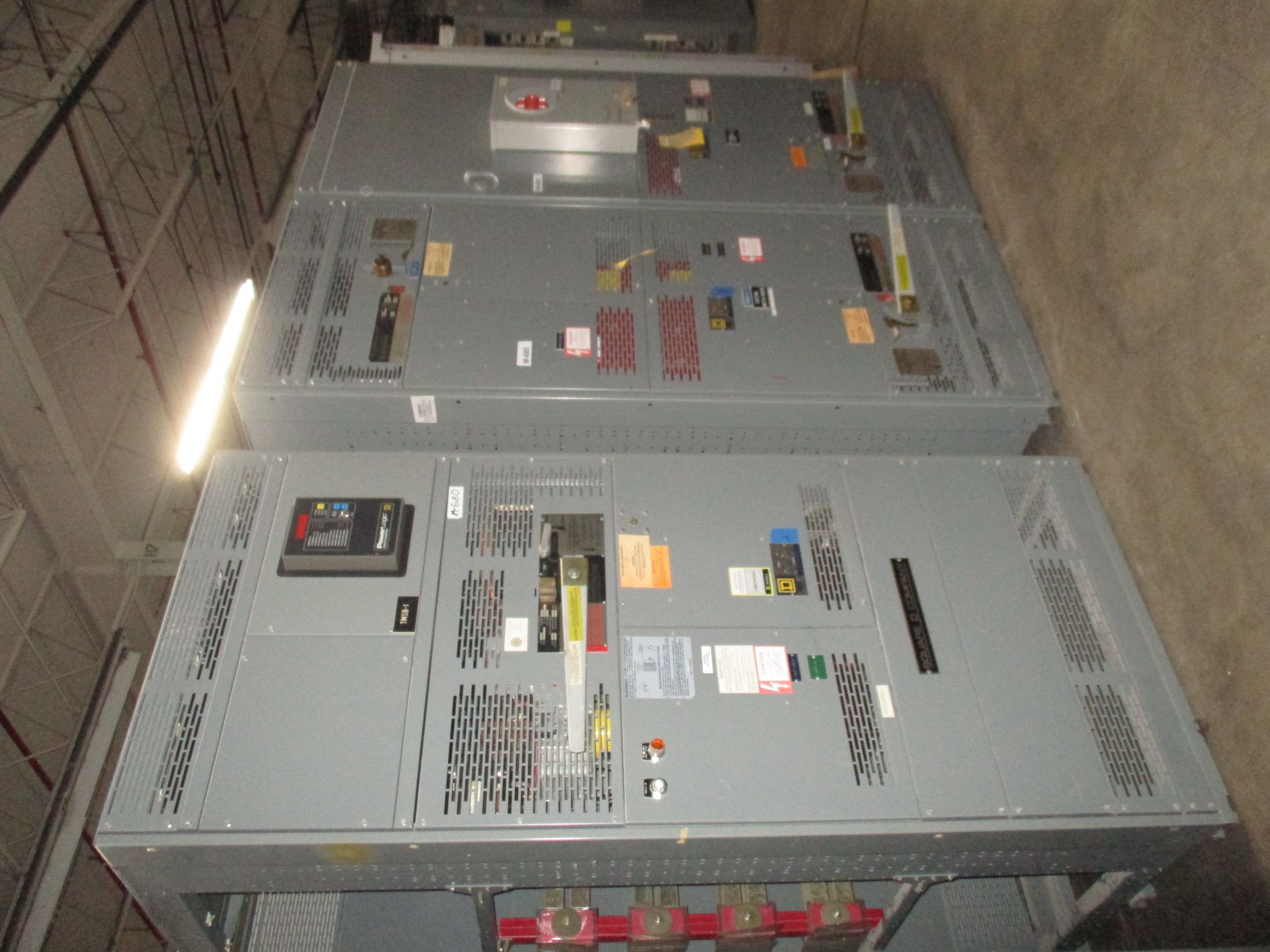

Square D QED Power Style Switchboard; 3000 amp fusible main switch- cat # BP03630EI, 480Y/277 volt, 3 phase, 4 wire, ground fault, NEMA 1 indoor rated. With (2) sections of fusible distribution panels. Reconditioned & guaranteed with a one year warranty.

2 Sections: From Left to Right

Main Fusible Panel

• Power Logic Circuit Monitor
• 3000 Amp Main Fusible Bolt-Loc Switch
  • Cat # BP03630EI
  • 480 Volt
• Ground Fault

• Fusible Distribution Panel

• 1200 Amp Fusible Switch
  • Cat # BPO3612
  • 480 Volt

Dimensions:

• Main Panel
  • 42" Width
  • 36" Depth
  • 91" Height

• Distrubution Panel 1
  • 36" Width
  • 36" Depth
  • 91" Depth

• Distribution Panel 2
  • 36" Width
  • 36" Depth
  • 91" Height

M-680                      LOC: Pillar 118
