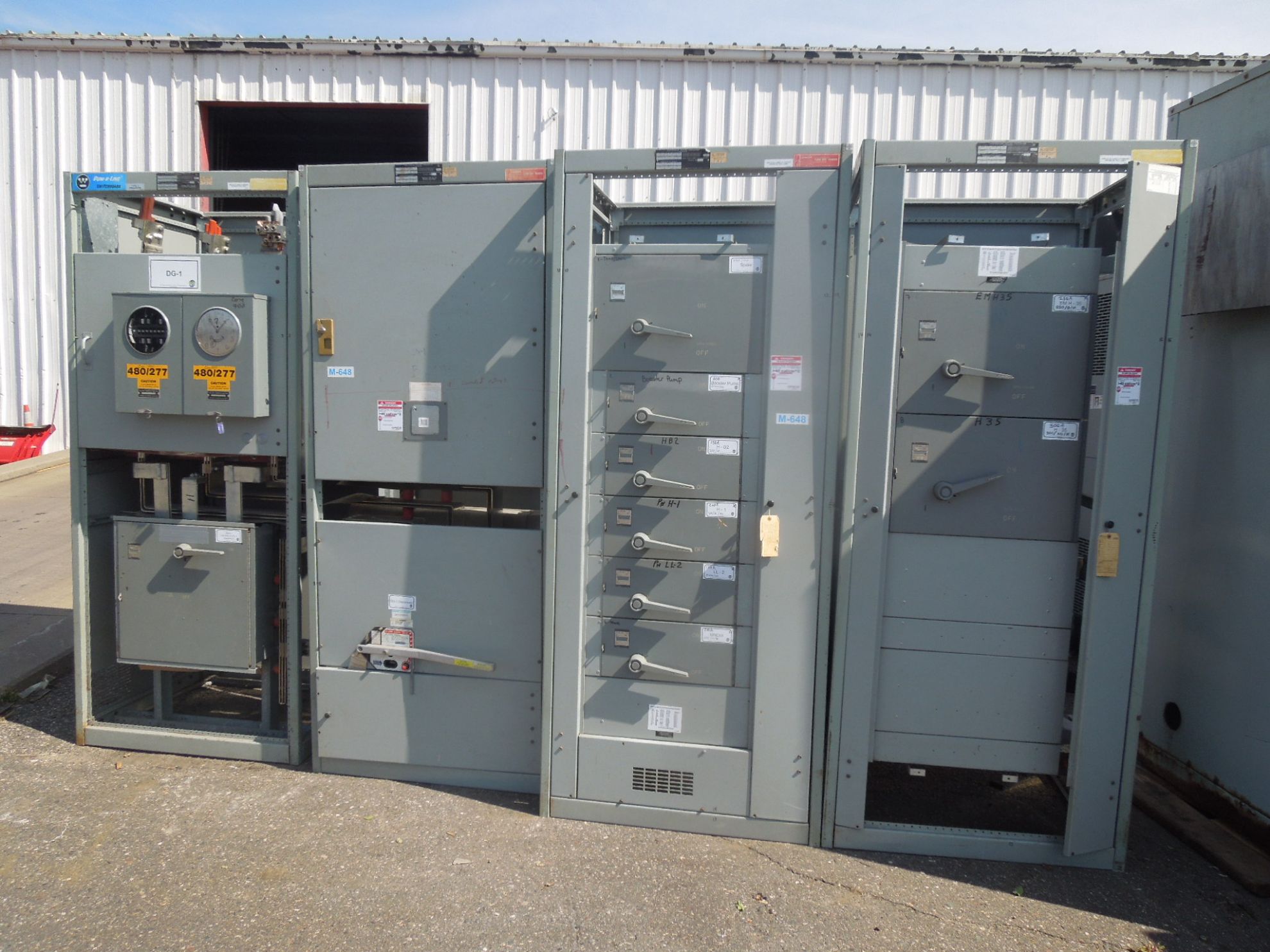

Westinghouse FDP Switchboard 2000 Amp 480Y/277 Volt 3 Ph 4 W NEMA 1 R&G

Product description:

Westinghouse FDP Switchboard; 2000 amp max, 480Y/277 volt, 3 phase, 4 wire, NEMA 1 indoor rated. With Main & distribution switches. Reconditioned & guaranteed with a one-year warranty.

4 Sections: From Left To Right

Distribution 1 Panel (Fed Separately than the Right Section)

• (1)- 800 Amp
  • FDPS367T

Main Fusible Panel

• 2000 Amp Fusible Main

  • Cat# QA-2033-CBC
  • 480 Volt

Distribution 2 Panel

• (1) 600 Amp
  • FDPS366R
• (5) 200 Amp
  • FDPS364R

Distribution 3 Panel

• (2) 400 Amp
  • FDPS325R

Dimensions:

• Each Section 38" Wide (152" Total Width)
• 36" Depth
• 90" Height

M-648                 LOC: Pilar 126 (C-7)
