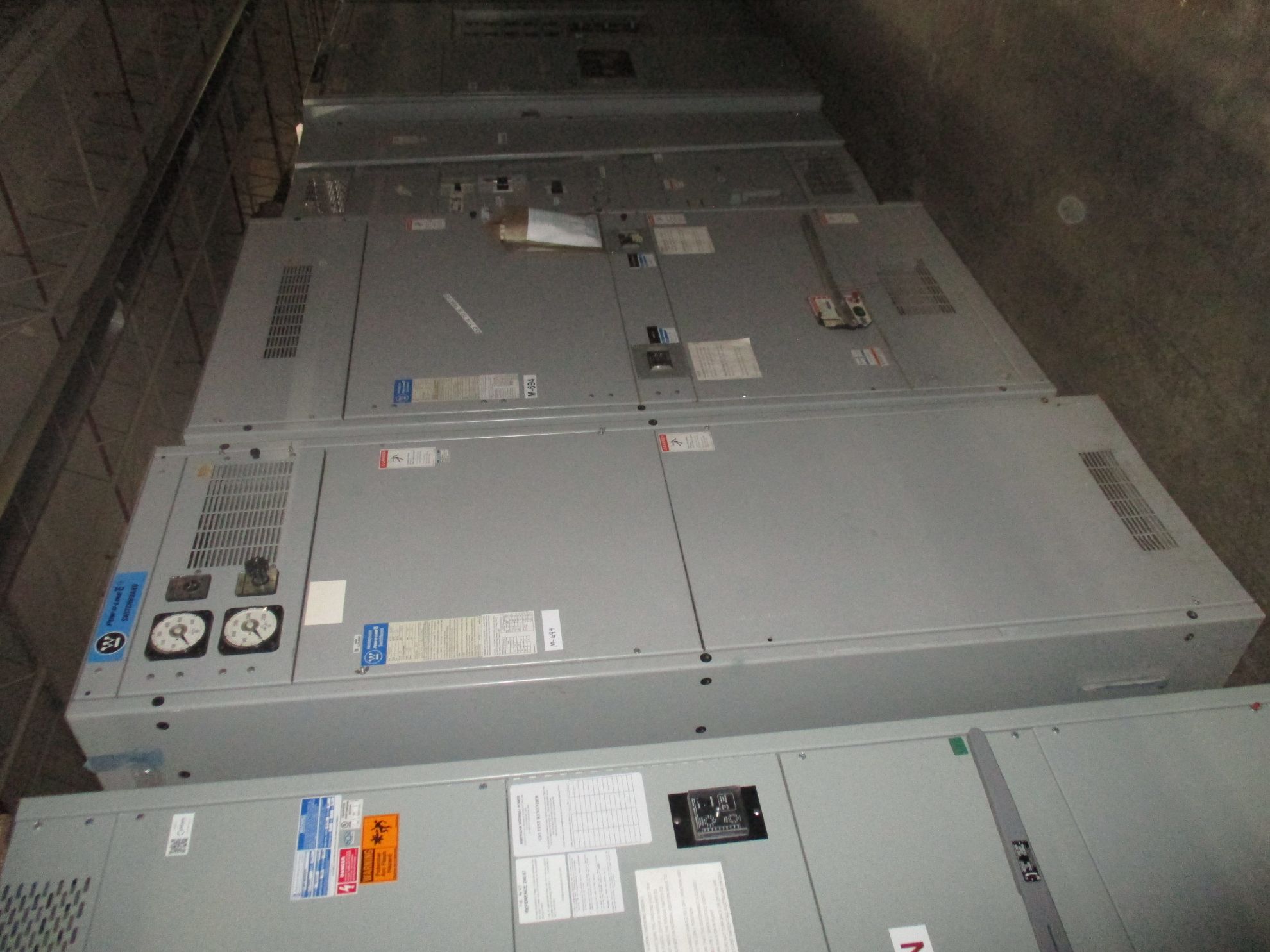

Westinghouse Pow-R-Line Switchboard QA-2533-CBC | 2500 Amp Fusible Main | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

Westinghouse Pow-R-Line Switchboard; 2500 amp fusible main switch- cat # QA-2533-CBC, 480Y/277 volt, 3 phase, 4 wire, ground fault, NEMA 1 indoor rated. With (1) fusible and (1) breaker distribution panels. Reconditioned & guaranteed with a one-year warranty.

3 Sections: From Left to Right

Empty Panel

• AC Amperes & AC Volts Meters

Main Fusible Panel

• Pringle Main Switch
  • Cat # QA-2533-CBC
  • 2500 Amp
  • 480 Volt
  • Serial # E52618S
• Ground Fault

Breaker & Fusible Distribution Panel

• (1) 1200 Amp HND 65K
  • Cat # HND312T33
  • Digitrip RMS 310 Rating Plug
    • Cat # 12NES1200T
• (1) 600 Amp Breaker
• (1) 400 Amp HKD65K Breaker
  • Cat # HKD3400F
  • 300 Amp trip unit
    • Cat # KT3300T
• (1) 1200 Amp Fusible Switch
  • Cat # FDPS368
• (1) 100 Amp Fusible Switch
  • Cat # FDPS363R

Dimensions

• Empty Panel
  • 30" Width
  • 36" Depth
  • 90" Height

• Main Panel
  • 45" Width
  • 36" Depth
  • 90" Height

• Distribution Panel
  • 45" Width
  • 36" Depth
  • 90" Height

M-694                            LOC: Pillar 134 (SPR F-8)
